rollnw | client

rollnw client is rollnw's local-first Neverwinter Nights module viewer and authoring workbench. It imports a module into a project, presents resources in workspace tabs, renders areas and blueprints through the shared viewer, and exposes the selected live object to focused Details surfaces, Smalls scripts, the terminal, and the command palette.

The integration target is a trustworthy viewer with bounded, explicit editing paths. It is not a complete replacement for every NWToolset workflow. New editors are added when their input, mutation, undo, persistence, and preview contracts are all defined.

rollnw client is currently one process with one SDL event loop, one kernel Smalls runtime, local project files, and a local renderer. The renderer presents live objects; it does not own a second gameplay or editor object model.

Screenshots

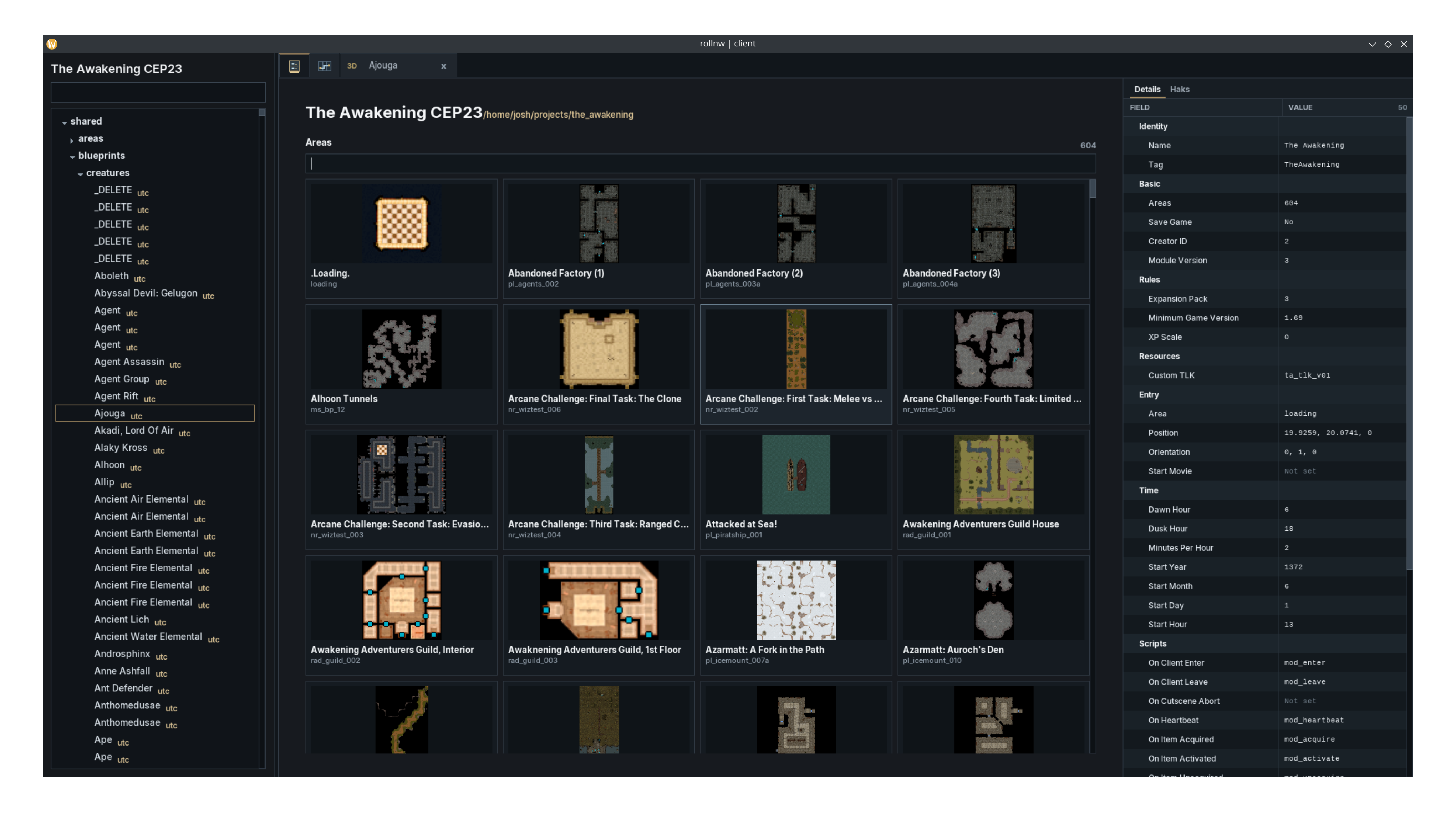

Module viewing with project-resource navigation and area minimaps.

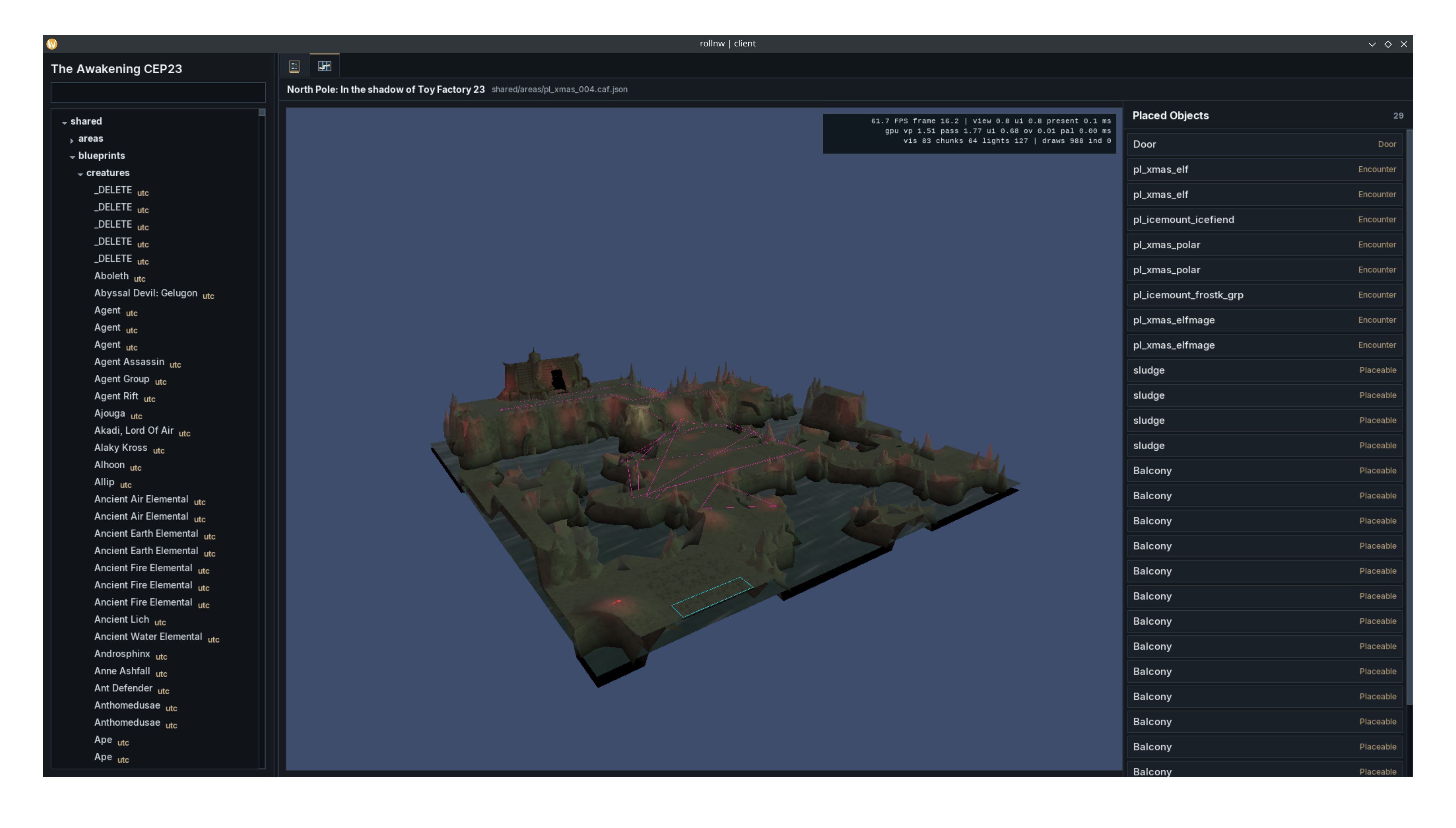

Area viewing with project-resource navigation and the complete placed-object list.

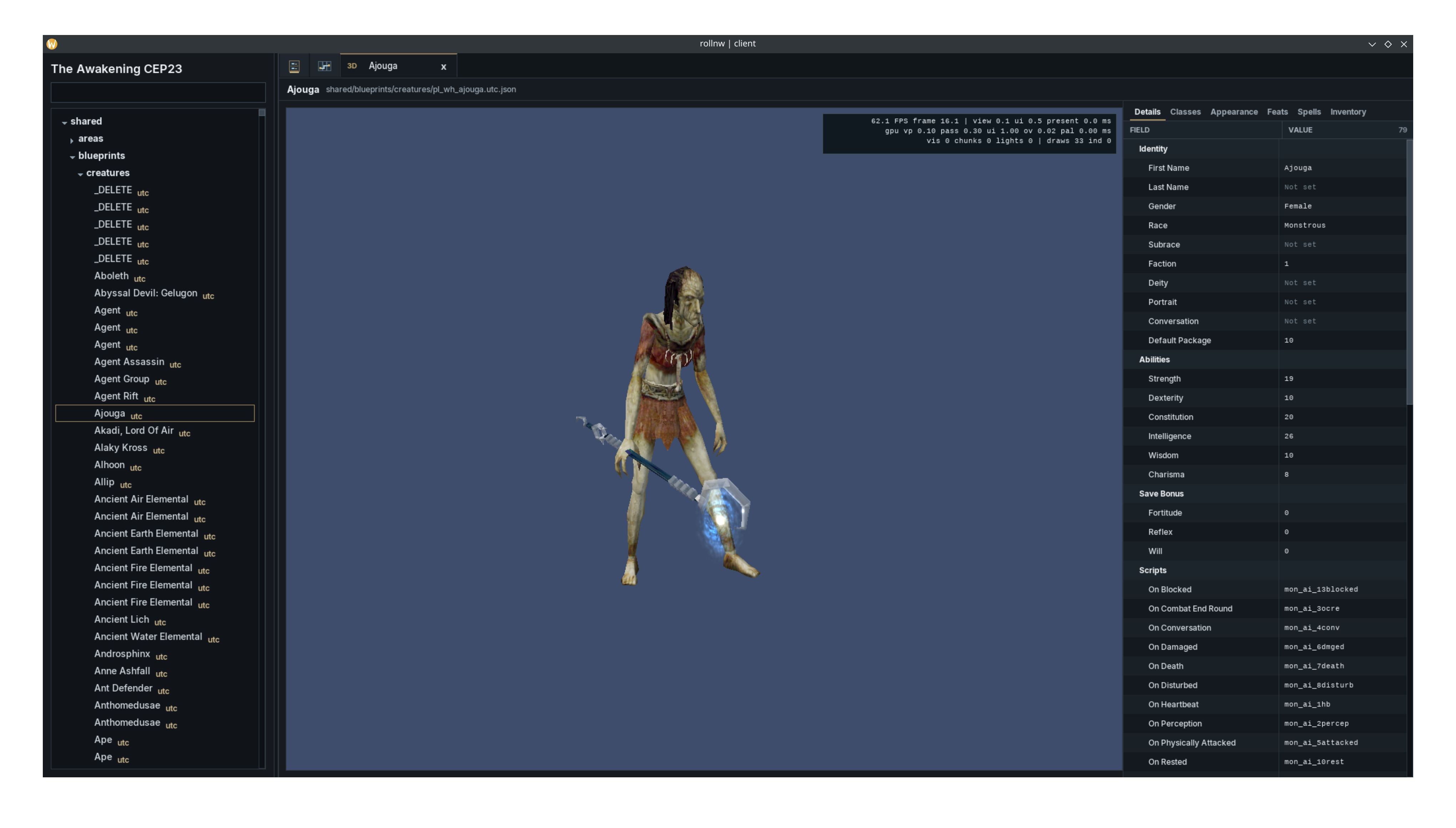

Creature blueprint preview with shared Details and focused editor tabs.

Importing A Module

Import a module from the command line before opening the resulting project:

rollnw-client import (--json|--legacy) <module.mod> [project-dir]

Use --json for the client's native project format:

./rollnw-client import --json \
  "/path/to/Neverwinter Nights/modules/example.mod" \
  ./example-project

Quote paths that contain spaces. If project-dir is omitted, the client creates a directory named after the module in the current working directory. For example, importing example.mod without a destination writes to ./example.

The JSON import creates rollnw.json, converts supported module resources to JSON, combines each area's ARE/GIT/GIC resources into one CAF file under shared/areas/, and generates area maps under .rollnw/cache/area_maps/. The NWN:EE installation and every hak named by the module must be discoverable; if automatic discovery fails, set NWN_ROOT and NWN_HOME to the installation and user directories. Import fails when a declared hak cannot be loaded.

To preserve the module's original binary GFF resources instead, use:

./rollnw-client import --legacy "/path/to/example.mod" ./example-legacy

The destination is created when it does not exist. Importing into an existing project updates files in place and does not remove unrelated or stale files, so use a new or empty destination when a clean import is required.

Runtime Shape

The common data flow is:

project/module resource
    -> ToolsetBackend command
    -> WorkspaceState tab
    -> ResourceDocument or live ObjectHandle
    -> ViewerSession
    -> selected active_object
    -> property and managed-view snapshots

User actions from menus, shortcuts, the command palette, terminal, RmlUi, and Smalls converge on CommandBus. A command returns one CommandResult with a status, diagnostic channel, optional undo action, and optional prompt. The command source does not get a separate mutation path.

The main ownership boundaries are:

active_object and its area command context are deliberate singleton exceptions. rollnw client has one active workspace surface, one displayed area, and one preview selection. The values are non-owning generational handles; changing tabs, clearing selection, reloading, or closing a scene clears or replaces them.

Workspace

WorkspaceState owns a contiguous list of tabs. A tab records its identity, kind, title, resource detail, dirty flag, optional subtabs, and undo/redo stacks. Undo history belongs to the tab containing the edited document; global commands do not add entries.

The workspace distinguishes home, module, project, area, blueprint preview, resource, and generic tabs. The permanent Home and Area tabs are not closable or movable. Opening another area replaces the Area tab's document state and clears its prior undo/redo history.

Dirty tabs use a complete close protocol:

workspace.close_tab
    -> clean: close
    -> dirty: Save / Discard / Cancel prompt
        -> Save: workspace.save_and_close_tab
            -> workspace.save_tab
            -> close only when save succeeds
        -> Discard: forced close
        -> Cancel: no command

Ctrl+W, palette actions, and terminal commands all dispatch this protocol. They do not close a dirty document directly.

Commands

CommandBus is the application action boundary. CommandSpec supplies stable IDs, aliases, scope, flags, default bindings, and usage text. The palette and terminal enumerate the same specifications that scripts execute.

Command scopes are:

• global: application or navigation state; never pushed to a tab undo stack.
• workspace: document operations; a successful result may contribute one CommandUndoAction to the active tab.
• renderer: renderer or viewport state.

CommandStatus::success and CommandStatus::noop are successful results. Only success results with an undo action, a workspace scope, and record_undo == true are pushed to undo history. New undo actions clear the tab's redo stack.

Smalls uses core.commands.v1.command_execute, so RmlUi handlers, scripts, the terminal, and native widgets reach the same command handlers. See transactions for the current mutation, undo, dirty, and save contracts.

Viewer And Workbench

Blueprint previews instantiate one live object and areas retain one live root area plus their contained objects. The viewer publishes the selected live object without copying gameplay state into the renderer or UI.

The object workbench reads live Smalls propsets and native facts into bounded presentation snapshots. The default Details surface is shared across placed object types; workflow-heavy data opens a focused surface:

• creature appearance, body parts, and PLT colors;
• creature classes, feats, spells, inventory, and equipment;
• item state and item properties; and
• module details and hak inspection.

These views demonstrate the intended split: reflection handles broadly useful data, while workflow-heavy collections use purpose-built views and commands. All data-dependent row surfaces must remain viewport-virtualized.

Area tabs provide precise mesh or authored-footprint selection for placed objects, Ctrl-click tile selection, a complete placed-object list, and camera focus on list selection. The validated Creature/Placeable structural slice supports placement, transforms, duplicate, delete, undo/redo, and native CAF save. Blueprint preview tabs use the same focused edit commands and save path.

Play Preview

Press F9 in an active area tab to enter the transient play preview. The first use opens the project tree to choose a Creature blueprint; the project-relative choice is persisted in rollnw.json:

{
  "preview": {
    "test_actor": "shared/blueprints/creatures/example.utc.json"
  }
}

The actor is detached from authored area membership. Preview movement therefore does not dirty the project or create undo entries, and it does not run scripts, encounters, combat, persistence, or lifecycle events. F9 or Escape removes the actor and returns to the unchanged editor selection and camera.

Move with WASD or the controller left stick, orbit with the right mouse button or controller right stick, and zoom with the wheel, triggers, or shoulder buttons. Left-clicking an area surface requests a path to that point.

Appearance Ownership

Appearance editing has one mutation path even though the UI catalogs join two data sources:

native appearance tables          profile Smalls config/state
  model, model type, labels         NWN rules, propsets, body parts, colors
              \                    /
               nwn1 visual resolution
                        -> copied visual rows
                        -> shared renderer

Native creature/placeable tables provide engine-loaded facts and localized catalog labels. nwn1.appearances, nwn1.creature_state, and nwn1.creature own NWN interpretation, live appearance state, validation, and visual resolution. Client edits invoke that profile API through the command and undo path. The renderer receives resolved rows; it does not read profile propsets or choose an appearance. Wing and tail catalogs are tool projections of profile config, not a second state owner.

RmlUi And Smalls

RmlUi owns layout and presentation. Smalls provides document behavior through typed event snapshots and a bounded list of UI commands. Resource mutation must go through core.commands.v1, not through RmlUi element operations.

The UI subsystem and language binding are documented in:

• tools/ui
• RmlUi/Smalls binding

Source Map

• main.cpp: SDL/RmlUi event loop, document rendering, active-object publication, save callback, and shell integration.
• toolset_backend.*: project/module state and native command registration.
• command_bus.*: command protocol and undo-action admission.
• workspace.*: tabs, dirty state, close decisions, and per-tab undo/redo.
• object_edits.*: validated live-object patch and area-membership batches, undo ownership, and rollback.
• resource_document.* / object_document.*: resource identity, presentation, serialization, and atomic JSON replacement.
• viewer_viewport.* / renderer*: shared viewer integration and viewport presentation.
• ui/panel.rml / ui/panel.rcss: current shell document and styling.

Current Limits

• The client is viewer-first. It does not yet provide new-area creation or a complete editor for every object aggregate.
• Native CAF area save is implemented. Structural placement and membership editing are currently limited to Creature and Placeable; other placed kinds are selectable and inspectable but do not all have structural commands.
• Encounter spawn lists require a dedicated editor; they are not flattened into generic Details rows.
• toolset.save_all is registered but remains a stub.
• The Smalls list host defines list state and callback protocols, but the current object-workbench DOM rows are materialized by the C++ VirtualListController path.
• Toolset presentation is packaged separately from profile policy, but runtime toolset-package replacement and hot reload are not implemented.
• There is no network server or serializable transaction protocol. Current object handles, Smalls type IDs, and undo closures are process-local.
